KW V4 coilover suspension
with HLS 2 hydraulic lift system
High-end performance coilover suspension with integrated lift function – uncompromising driving dynamics combined with maximum everyday usability.
Description
The KW V4 coilover suspension with HLS 2 combines state-of-the-art motorsport damper technology with a hydraulic lift system . In addition to fully independent adjustment of high- and low-speed compression and rebound damping, the HLS 2 allows for a temporary raising of the vehicle's front end without affecting the performance setup. The result is maximum control on the road and on the racetrack, while maintaining excellent everyday usability.
Damper technology & adjustment options
- Stepless height adjustment
- Low-speed pressure level can be adjusted separately.
- High-speed pressure level separately adjustable
- Low-speed rebound damping is separately adjustable.
- High-speed rebound damping is separately adjustable.
- Fine-tuning for street, track day and motorsport

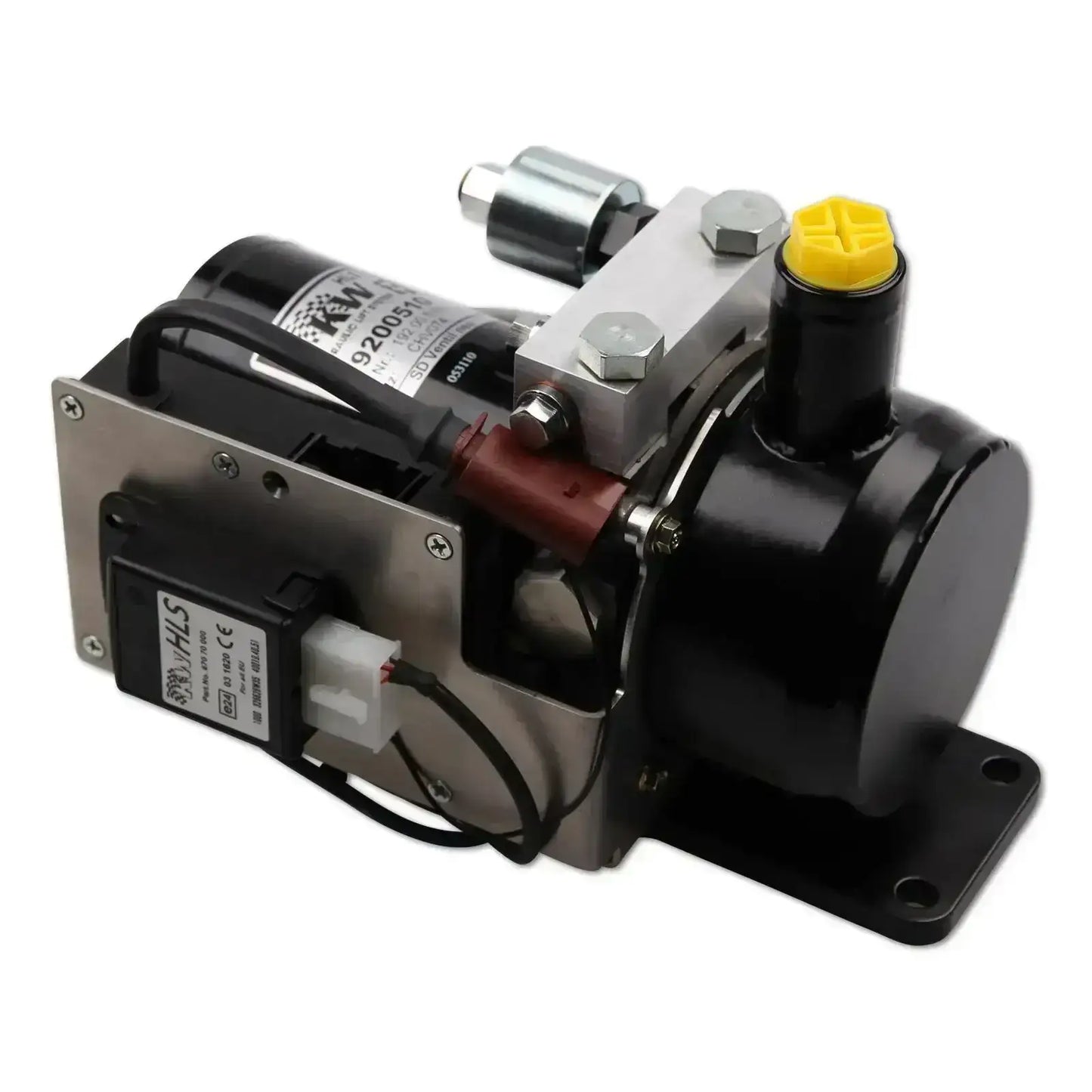

HLS 2 – Hydraulic Lift System
- Hydraulic lifting of the vehicle front at the touch of a button
- Makes it easier to drive over ramps, curbs and thresholds.
- Automatic lowering at higher speeds
- Unobtrusive integration into the chassis concept
- No impairment of the driving dynamics settings
Driving dynamics & performance
- Extremely precise and direct handling
- Maximum stability under lateral and longitudinal acceleration
- Minimized pitching and rolling movements
- Optimal traction even at high engine power
- Consistent performance under sustained athletic stress
Motorsport technology
- Racing damper technology from international motorsport
- Multi-valve damper system for precise damping control
- High thermal stability
- Individually adjustable to vehicle, tires and usage profile
- Maximum power reserves
Construction & Materials
- Stainless steel damper housing (KW inox-line)
- Linear Performance Springs
- High-precision manufactured damper and hydraulic components
- Fine thread adjustment for precise vehicle height
- Durable valve and sealing technology
Area of application
Designed for high-performance road vehicles and track day vehicles where uncompromising driving dynamics are to be combined with a practical lift function.
Notes
The installation of the suspension and the integration of the HLS 2 system must be carried out by a qualified specialist workshop . Professional wheel alignment and individual suspension tuning are mandatory.
