KW Gewindefahrwerk V4 Racing passend für Subaru BRZ ZD8 / Subaru BRZ ZC6 u. a.

1 / 8

Product description

Here you will find all technical specifications for: KW Coilover suspension V4 racing | for Subaru BRZ ZD8 / Subaru BRZ ZC6 and others.

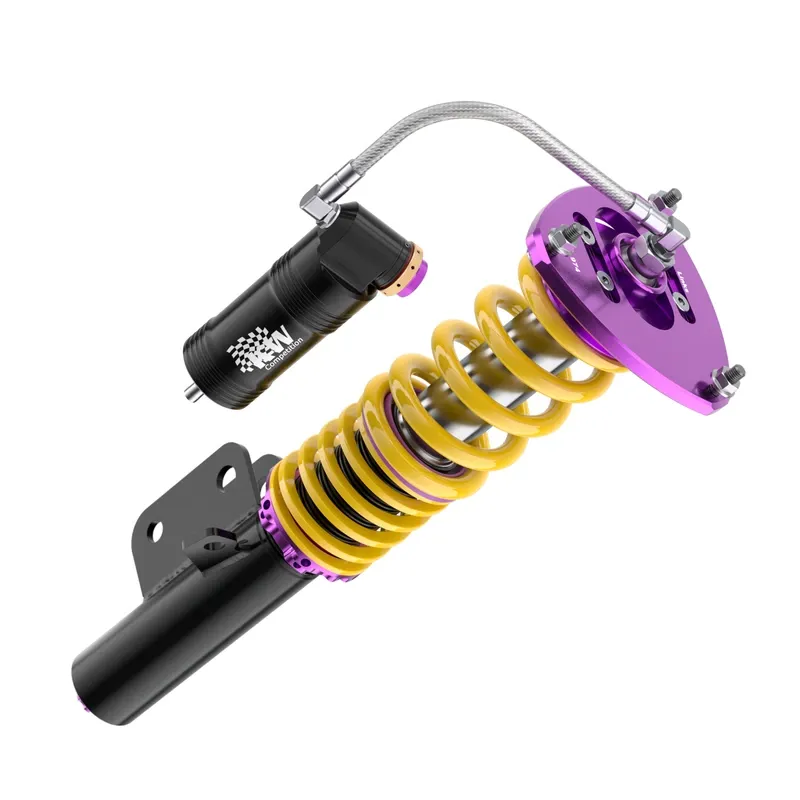

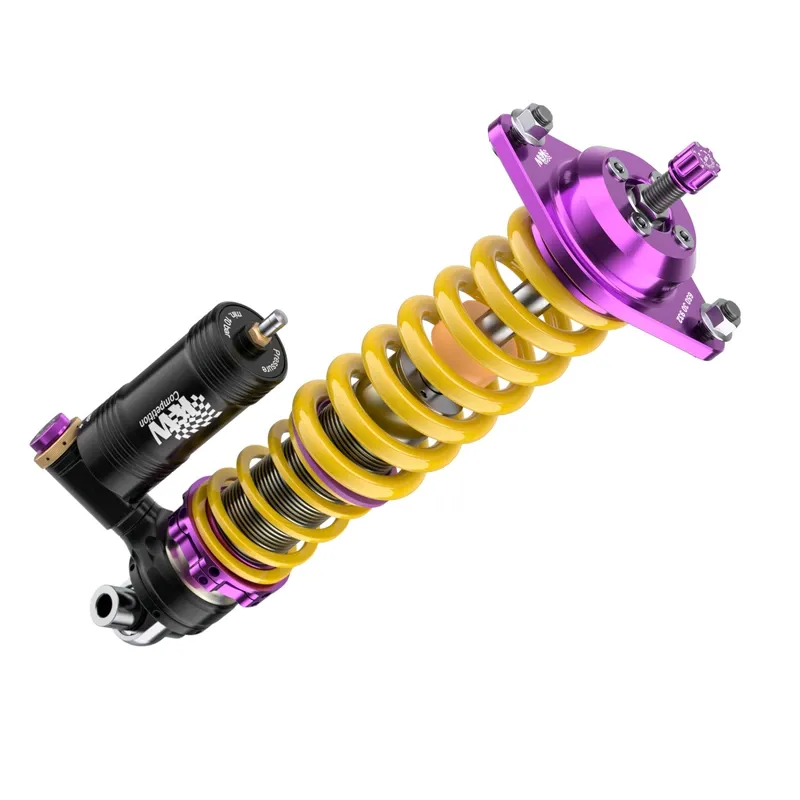

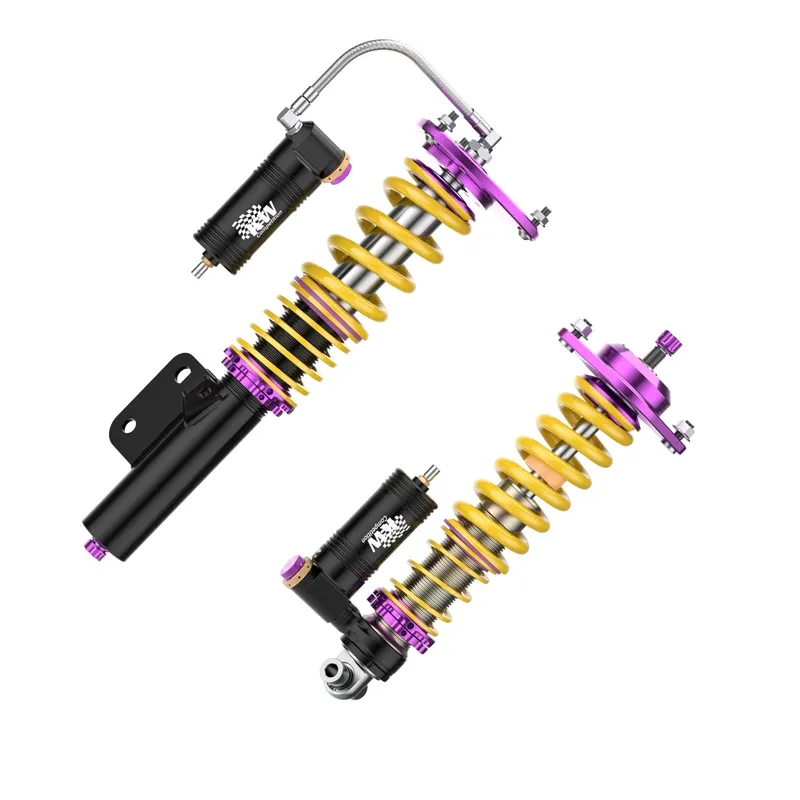

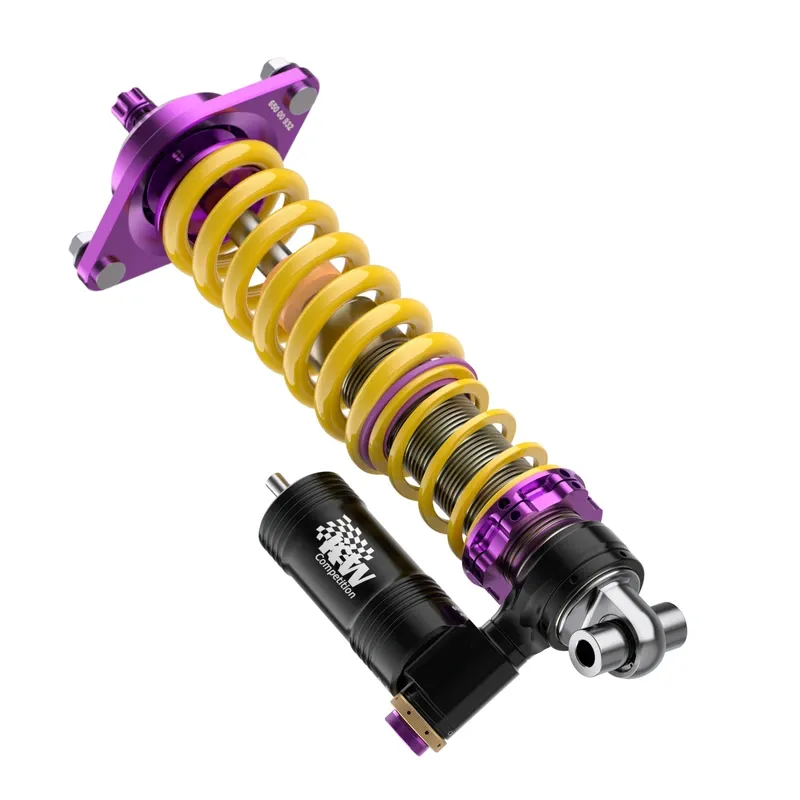

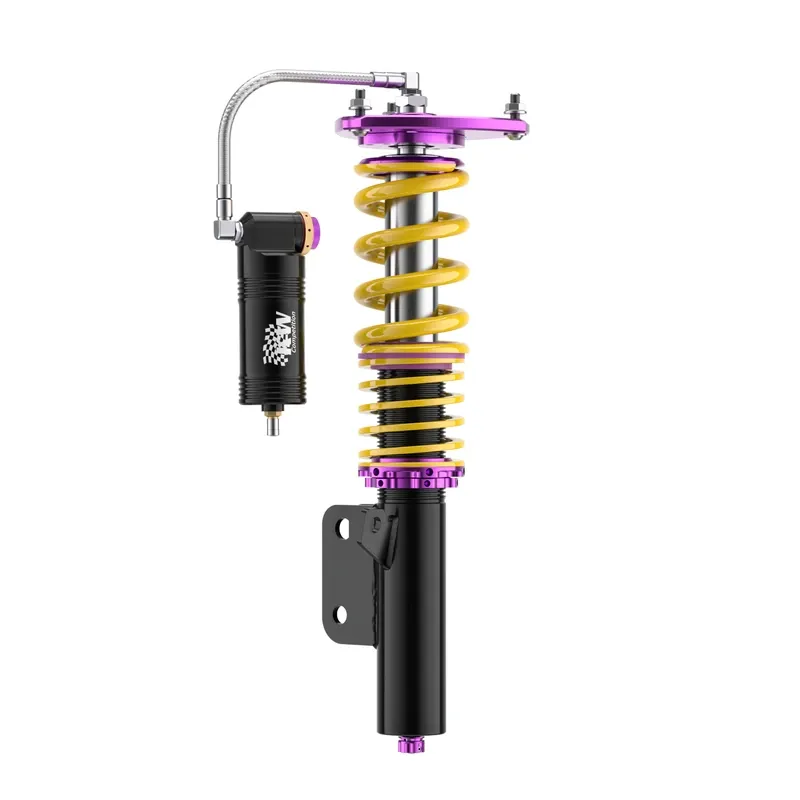

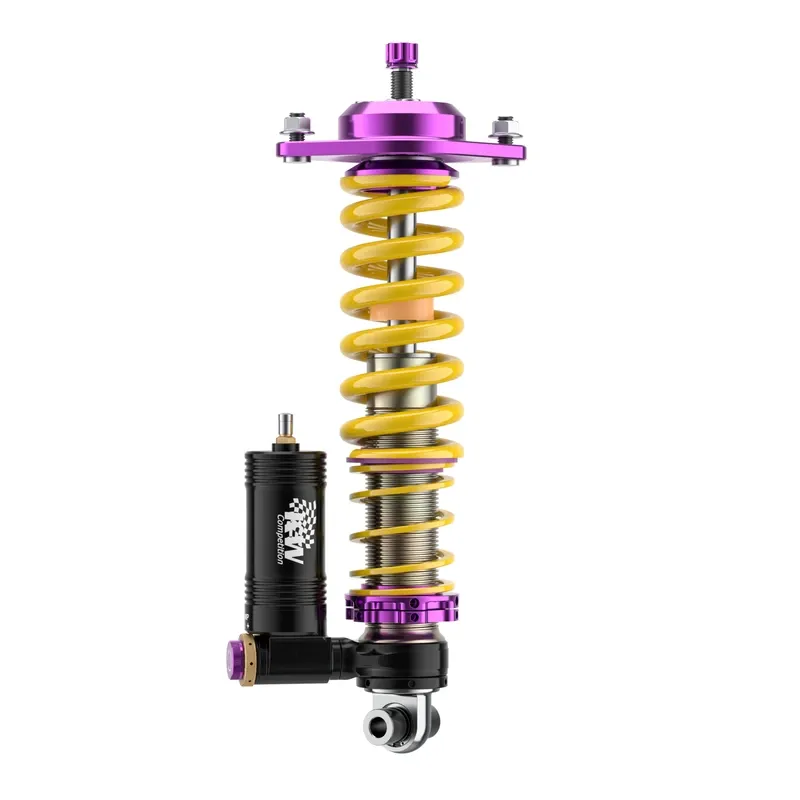

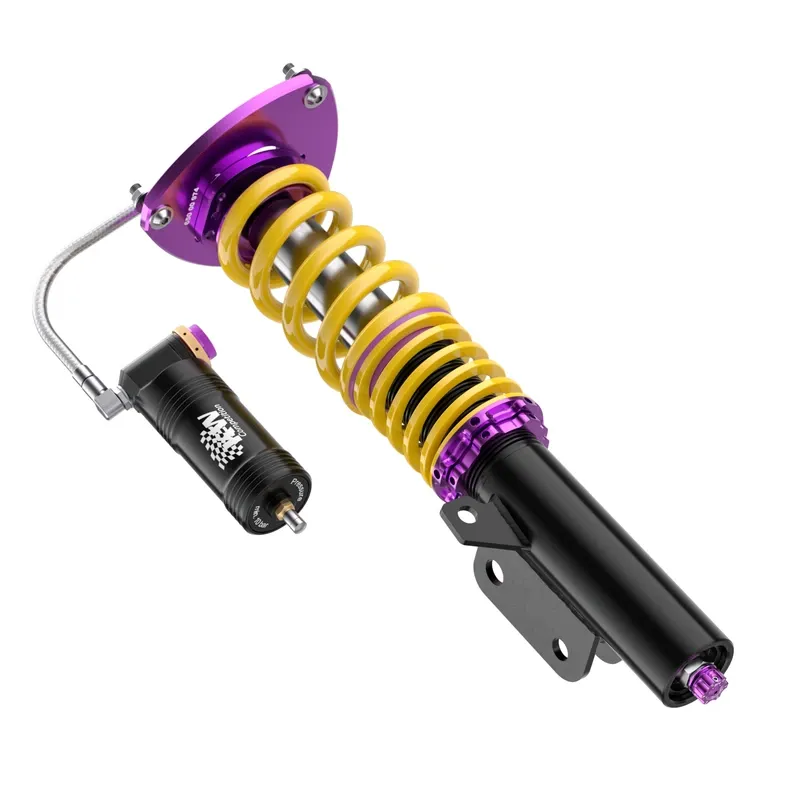

KW Coilover suspension V4 racing for Subaru BRZ ZD8 / Subaru BRZ ZC6 and others

Original KW component – display and exhibition piece only, not approved for road use.

FA: galvanized steel / RA: aluminium Original KW

What is this product?

According to the manufacturer this component has no approval for road use. It is offered solely as a display and exhibition piece.

Not for use on public roads, race tracks or in motorsport.

Technical details & design

  • Material: FA: galvanized steel / RA: aluminium
  • Height adjustment: front axle Thread, rear axle Thread
  • Damping adjustment: Rebound and compression adjustment
  • Intended use: Lowering
  • Rear axle design: Strut
  • Spring rate front axle: 130-140 + 20-60-80
  • Spring rate rear axle: 130-50-170 + 5-50-80
  • Colour: yellow/purple

Benefits

  • Original KW component in manufacturer quality

Scope of delivery & use

Scope of delivery

  • set front axle + rear axle

Use

  • Not intended for installation on a vehicle – display and exhibition piece.

Vehicle compatibility

“Fits” describes technical vehicle compatibility only.

Exactly which vehicles fit – series, engine and model year – is shown in the checked “Vehicle compatibility” overview on this page. It is generated directly from our vehicle database and always up to date.

Before ordering, please check the model year, engine code and equipment. If in doubt, we are happy to help.

Frequently asked questions

Does the product fit my vehicle?

The product is designed for Subaru BRZ ZD8 / Subaru BRZ ZC6 and others. Please compare model, model year and equipment with the table above or ask us before ordering.

Does the product need to be registered?

This product is not approved for road use and is a display and exhibition piece only.

Important notes & legal information

Approval: This product is a display and exhibition piece only. Not for use on public roads, race tracks or in motorsport.

Vehicle compatibility: “Fits Subaru, Toyota” is purely a statement of technical compatibility. The product is not an original product of the vehicle manufacturer and, unless expressly stated otherwise, has no business connection with the respective vehicle manufacturer. All brand names serve solely to identify compatible vehicles.

© KTH Parts GmbH – All brand names are the property of their respective owners and are used solely to identify vehicles.

Technical data

Farbegelb/lila
MaterialVA: Stahl verzinkt / HA: Aluminium
AusführungV4 Racing
AnwendungsbereichTieferlegung
HöhenverstellungVorderachse Gewinde, Hinterachse Gewinde
DämpfereinstellungZug- und Druckstufe
Federrate Hinterachse130-50-170 + 5-50-80
Federrate Vorderachse130-140 + 20-60-80
HinterachsausführungFederbein

Scope of delivery

  • Set Vorderachse + Hinterachse

Vehicle fitment

This product is compatible with the following vehicles. “Fits [make]” refers exclusively to vehicle fitment.

VehicleEngineBodyYear
Subaru BRZ ZC62.0 · 200 hp · FA20–2012–2020
Subaru BRZ ZD82.4 · 234 hp · FA24D–from 2022
Toyota GR86 ZN82.4 · 234 hp · FA24D–from 2021
Toyota GT86 ZN62.0 D-4S · 200 hp · FA20D–2012–2021

⚠ Please check the model year, engine code and equipment before ordering. If in doubt, feel free to contact us – we are happy to help.

Product safety information

Pursuant to Regulation (EU) 2023/988 (GPSR).

Manufacturer
KW
Aspachweg 14, 74427 Fichtenberg, Germany
info@kwautomotive.de

KW

KW Coilover suspension V4 racing | for Subaru BRZ ZD8 / Subaru BRZ ZC6 and others

SKU 39756004

€7,355.39

incl. 19% VAT, plus shipping

Not approved for road useDelivery time to Germany:3–4 weeks

Shipping to Germany: from €24.00 (DHL Paket) · Weight: 24 kg

KW Coilover suspension V4 racing for Subaru BRZ ZD8 / Subaru BRZ ZC6 and others. Material: FA: galvanized steel / RA: aluminium, Height adjustment: front axle T

  • Original KW Bauteil in Herstellerqualität
  • Detailgetreue Präsentation der KW Fahrwerkstechnik

This product is a display and exhibition piece only. Not for use on public roads, race tracks or in motorsport.

“Fits Subaru, Toyota” is purely a statement of technical compatibility. The product is not an original product of the vehicle manufacturer and, unless expressly stated otherwise, has no business connection with the respective vehicle manufacturer. All brand names serve solely to identify compatible vehicles.
